Intelligent deep-sea aquaculture cage monitoring system
2022-05-07

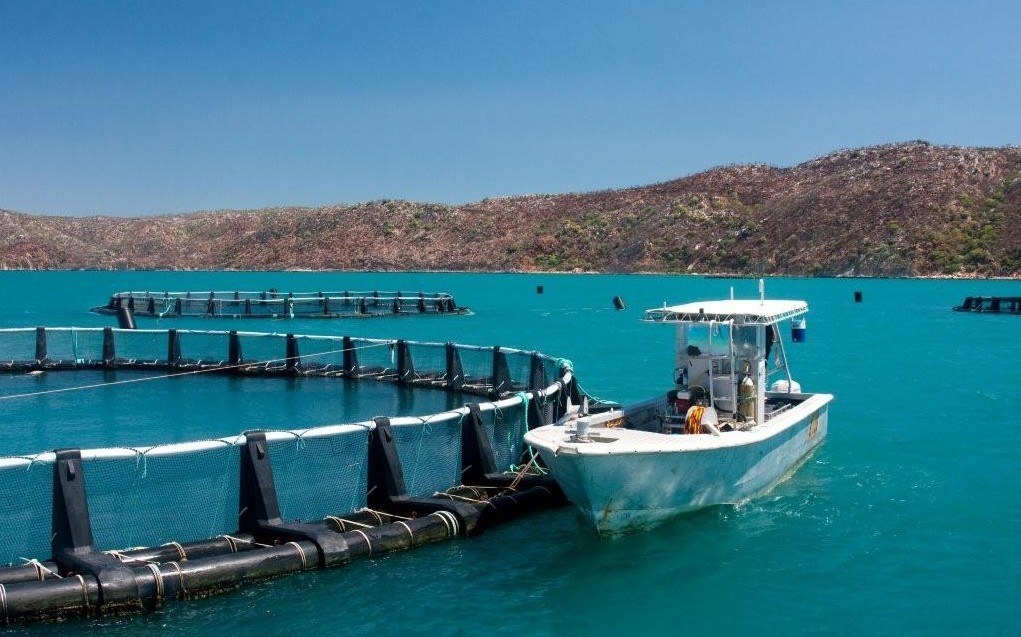

The Smartmarine intelligent deep-sea cage monitoring system can monitor the cage, seawater, weather, and fish, etc; Remote control of the lifting and lowering of the cage during typhoon and heavy wave weather; During the normal breeding process, the system can monitor feeding systems and cage cleaning systems, etc
The Smartmarine intelligent deep-sea cage monitoring system can monitor the cage, seawater, weather, and fish, etc;
Remote control of the lifting and lowering of the cage during typhoon and heavy wave weather; During the normal breeding process, the system can monitor feeding systems and cage cleaning systems, etc
Sensors or devices
Cage: depth, posture, position
Safety: Navigation light, monitoring, Automatic identification system
Water quality: water quality sensor ->conductivity, salinity, Total dissolved solids, resistivity, density, dissolved oxygen, ORP, pH, water temperature
Seawater: Waves and Velocity
Meteorology: wind speed, direction, temperature, pressure, relative humidity, etc
Fish: Video or sonar ->Weight distribution, size distribution, growth trend, feed conversion rate
control equipment
In typhoon weather, the lifting and lowering of the cage can be achieved by controlling the filling and drainage; The system monitors parameters such as flow rate and liquid level, and controls the filling and drainage equipment to automatically achieve the balance and lifting speed of the cage; It can also remotely control the feeding system and cage cleaning system;
The system is designed with manual control equipment, which can be manually controlled when the maintenance ship approaches the cage; Further improve the reliability of the system;
Wireless transmission system
Select various wireless transmission frequencies as needed to achieve remote transmission of multi-channel video and data, and the transmission distance depends on the location of the network box and onshore receiving system;
Wireless transmission devices are connected through Mesh, which improves the reliability of wireless transmission and enables multiple network boxes to be controlled on a remote control system.
software system
*A web-based system that truly crosses platforms, allowing any terminal connected to the internet to monitor and control the system by opening a browser;
*Display parameters through various methods such as curves and numbers
*Multi channel video embedded webpage display;
*3D display of equipment such as mesh crates for more intuitive control;
*The management system for device status and alarms allows you to promptly obtain abnormal information about the device or system and eliminate it in a timely manner.
